Home > Products > Sensors > BLE Ultrasonic Liquid Fuel Level Sensor
  • BLE Ultrasonic Liquid Fuel Level Sensor
  • Part No.:UL212
  • Ultrasonic Fuel Level Sensor with Fuel Theft Alarm RS232/RS485 Interface
  • Ultrasonic Fuel Level Sensor for Fleet Fuel Management.png

    Ultrasonic Fuel Level Sensor All in One Design

    Model: UL212, UL212-E

    Application: M2M Devices, GPS Tracker, Mobile DVR

    Features :


    l  No Drilling Holes in Tank, Easy Installation

    l  Support Any Liquid: Diesel, Gasoline, Water, etc.

    l  Support Any Material Tank: Metal/Aluminum/Stainless Steel /Fiber/Plastic

    l  Resolution: 0.1mm

    l  Accuracy: 99.5%

    l  Maximum Measuring Range: 100cm (UL212), 250cm (UL212-E)

    l  Lowest Detection Hight(Blind Area): 3cm

    l  Maximum Tank Thickness: 8~12mm

    l  Output Interface: BLE Bluetooth 5.0 +RS232(Default)/RS485+Analog(0~5V)

    l  Mobile App configuration &Calibration

    l  Built-in AI Algorithm to filter abnormal signal

    l  Fuel Theft Alarm I/O Output

    l  IP68 waterproof

    l  Hardware Partners: Teltonika, GEOTab, Calamp, Wireless Link, Queclink, Gosafe, Jimi Concox, Meitrack, FifoTrack, BSJ, Streamax


    Part No.

    Maximum Range

    Blind Area

    Beam Range

    BLE

    Bluetooth

    Signal Output

    Voltage



    UL212

    100 cm

    3cm

    11°

    Yes

    RS232/RS485,  Analogue (0~5V)

    9~36V




    UL212-E

    250 cm

    3cm

    11°

    Yes

    RS232/RS485,  Analogue (0~5V)

    9~36V






    Specification:

    Parameter

    Description

    Power Supply

    9~36V DC

    Max Power Consumption

    0.7W @12V DC

    Measuring Range

    3~250cm

    Resolution

    0.1mm

    Accuracy

    99.5% 0# Diesel ,25℃)

    Maximum Tank Thickness

    <12mm

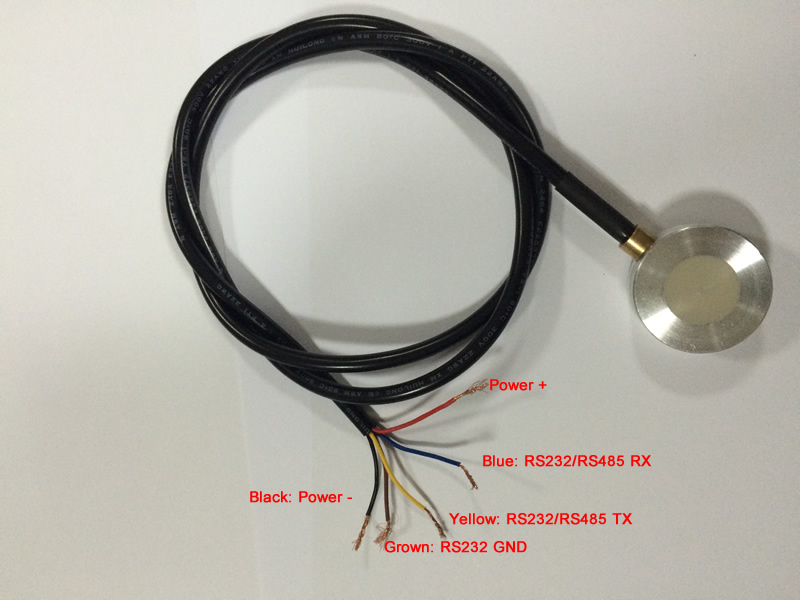

    Interface

    RS232default/RS485

    Analog 0~5V

    BLE Bluetooth5.0

    CAN (optional)

    Serial Communication

    9600 baud rate(customized)data bit 8, stop bit1, no flow controlno verification bit

    Support   Protocols

    Teltonika, GEOTAB,   BCE, Ruptela, Ominicomm LLS, CR, Calamp, Atrack, Fifotrack, Queclink,   Meitrack, Concox Jimi, Queclink, Xirgo,Wireless Link

    Extension Cable

    9 meters

    Working   Temperature

    -40~85 @1 ATM

    Working Humid

    5~99%

    Explosion-proof   Class

    Exd II CT5

    Waterproof

    IP68

    Size:

    BLE Bluetooth Ultrasonic Fuel Level Sensor.png

    UL212 Installation & Configure Tool Android/IOS APP:


    UL212 Mobile APP.png


    How does it work?

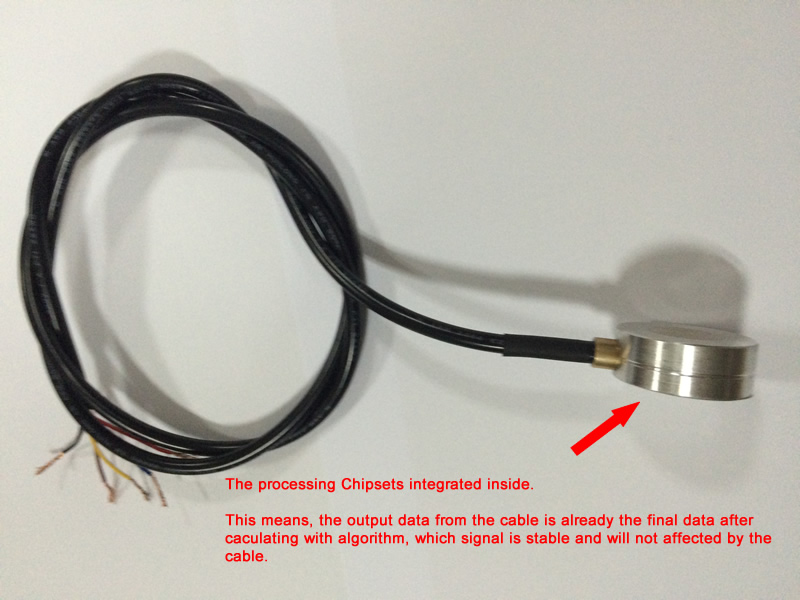

    It uses ultrasonic probe to detect the fuel level height and carries out smart processing for height signal of fuel quantity through built-in program of the controllers box


    Then it sends the fuel height data to platform through GPS Tracker/Mobile DVR to generate the fuel quantity report after analysis.


    How does it compared with Capacitive Fuel Level Sensor?

    The built-in algorithm will maintain the output fuel level data to be smooth, stable and accurate, which will not be affected by road status or shaking.


    It is as good accuracy as capacitive fuel sensor, but no need to draw holes on tank.






    Recommended GPS Tracker that can work with our ultrasonic fuel sensor

    Teltonika: FMB640,FMB630,FMB125, FMC640

    Queclink: GV200, GV200G, GV300

    Tenet: TA7, TA9

    Meitrack: T336, MVT600,MVT800,T1

    Calamp: LMU-2000, LMU-2100, LMU-2600, LMU-2700 Series.

    FiFotrack: A300, A600




    Gurtam Wialon Fuel Level Report.png











    For more details, please contact Email: sales@tenet.com.hk , Skype: tenet.instrument, Tel:+86-755-82591445
